Semi-regular Glamour Shots Thread

Following from this thread we’re going to try doing a semi regular “ROS glamour shots” thread in ROS Projects. What is a glamour shot? It is a screen capture, tutorial, video, or image of whatever you are working on in ROS or Gazebo. We all do this in our private work forums but we should do it out in the open more.

There are five rules:

  • It must be something you or your team made.
  • It must use ROS or Gazebo.
  • You need to include at least a one sentence description.
  • Nothing is too big or too small. We want everything from home brew bots to fleets of autonomous cars.
  • Be excellent to one another.

5 Likes

I feel like I shouldn’t repost the two things I’ve recently posted (one in the attached thread and another here) and instead I present that one time we drove a robot in VR back in grad school (4 years ago I think).

The area is digitized using a kinect and ElasticFusion + a home grown mesh simplification algorithm, the VR rendering was done through blender, and AMCL localizes the robot in this environement against an existing occupancy grid map.

4 Likes

ROS melodic, ZED-M camera and Livox Lidar. Nvidia Xavier processor.

5 Likes

Interesting, Is wiring for the wheel motors running through the the rod?

Glad this thread is alive !

We did some videos of our robots with different use case (well, the usage is arguable) just for fun with my intern this year (and also to teach them ROS a bit).

I might post them on a regular basis, I want to see more cool robot!

Just to begin with something basic, we did the good old " I’m not a robot " with a dobot :

The catch here : We didn’t use a camera for recognition, we plugged our control software with a small ros node that send keyboard (1-9 and enter) command to the robot driver with prerecorded cartesian trajectory. We just had to launch it, the robot press submit, we press the correct button to pass the captcha, and press enter so the robot can do the last trajectories and submit the captcha. The robot is just semi-autonomous but it was fun to make !

4 Likes

Slammer, a robot I’m building as a learning platform for ROS.
It is additionally serving the role of development/test robot for a new version of uNav from Officine Robotiche based on STM32.
It is equipped with a RPLidar A1, a Realsense r200, a BNO055 imu, current/voltage monitor and is powerd by a a Jetson Nano.

5 Likes

Yea the box is supported by a pair of 1" carbon tubes so all the wiring runs through those to the wheels. It has about 8 inches of articulation.

1 Like

Hi!

Erwhi Hedgehog is actually the smallest (120x120mm) ROS robot that achieve autonomous navigation and vision tasks.

This is main repo to the project:
https://github.com/gbr1/erwhi-hedgehog
It is completely opensource and openhardware.
It works on ROS, Gazebo and, if you need, AWS Robomaker.

Learn more on my website:
https://gbr1.github.io/erwhi_hedgehog.html

Gazebo: https://www.youtube.com/watch?v=R5mXczDg0mo

Intel spot: https://twitter.com/i/status/1181940024776052736

6 Likes

Nice documentation gbr1!

Well since we post pictures of our loved ones…
Here comes my 4wd wild thumper:

ROS Kinetic running on a i.MX6 ARM Cortex-A9 Quad Core, main sensor is a rplidar a2 (image still shows the XTion). Odometry is corrected with a BNO055 IMU. It is powered by two batteries in parallel. I/O is done by additional AVRs microcontrollers.

4 Likes

That’s such a cute robot (and a beautiful photograph).

Is there a way to buy just some of the components? Or is it “full kit” vs “print/source your own”?

1 Like

@safijari thank you for your interest in Erwhi Hedgehog!
I’m working on “how to buy” option and understanding what could be better for a student like me (e.g. open an online shop, sell on tindie, etc.).
Please feel free to write to me an email (my address is giovannididio.bruno@gmail.com) with the list of parts you need.

A first kit of the robot (without sengi carrier board and other “robotic parts”) was released by UPBoard/AAEON:


In fact demos I did for this kit are the same of Erwhi, and Intel IoT “commercial” is with Erwhi.

1 Like


Ros Melodic. About 350kg. 4m x 4m x 1m. SDF completed with launch files at Flower Spider.
It’s fully pneumatic with PWM solenoid actuators so may be a step too far (!) to make it walk without some mechanical changes.
I’m currrently working on;

  • Modelling Pneumatic cylinders forces in Gazebo
  • Experimenting with Gait
  • I’ll then move on to a motion plan and controller.
    It’s an art project and when it walks it’ll be covered in floral suits which are slowly growing;

    Some more info at Flower Spider Facebook
    Advice is welcome. It’s a bit robotically lonely in Cape Town.
9 Likes

Holy moly. That is incredible! Keep us posted. I would love to see this thing walking.

I for one welcome our arachnid robot overlords.

1 Like

massive garage

You must not live in California :frowning: otherwise I’d love to help as I could!

We are OUTX Polaris we are building a Big USV.


All of navigation stack is open source.

2 Likes

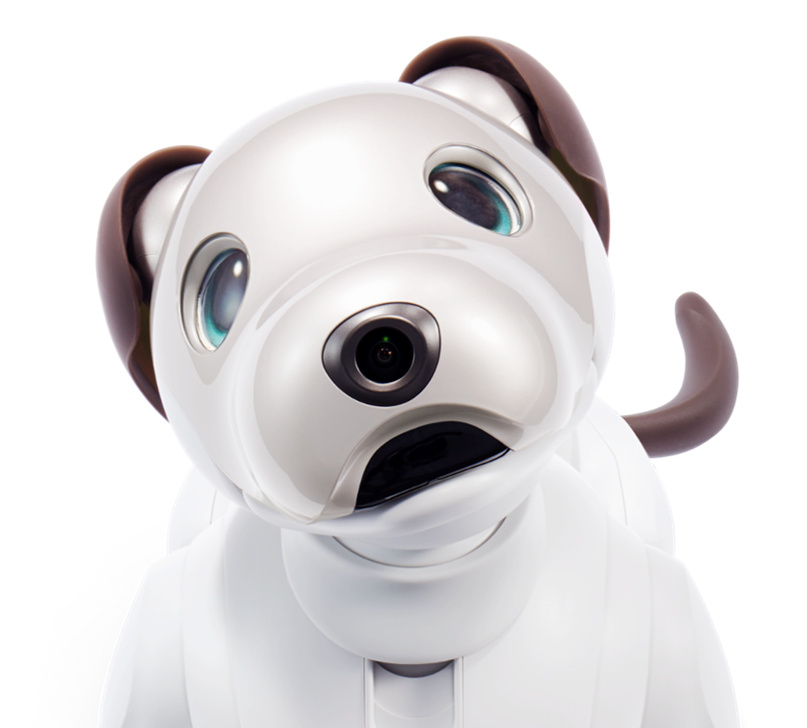

aibo is the whole new concept of robotics to bring emotional bond to users and owners, and every single day you can find another step forward.

1 Like

This arachnid robot overlord has a giant red emergency off switch on its side. I think you’re safe.

2 Likes
